$2,749.00

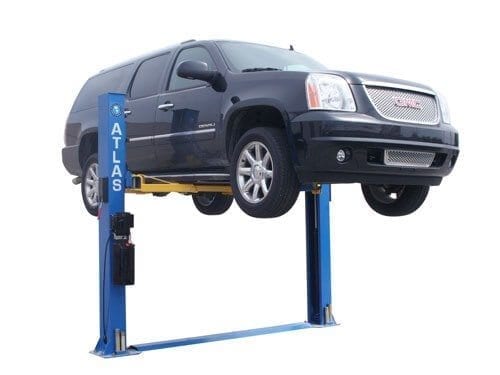

Atlas Baseplate 8,000lb. Capacity 2-Post Lift
The Atlas® BP8000 is a baseplate two-post lift designed for low ceiling garages. The total column height of 108 inches or 9 feet allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 foot 3 inches. The BP8000 also has many of the popular features found on larger more expensive lifts, including a single-point lock release, Super-symmetric arms, and a twelve piece truck adapter set.
| Atlas® ATTD-BP8000 Specifications | ||
| Capacity | 8,000 LB. | Overall Height | 108" (9’) | Overall Floor Width | 132" (11’) |
| Outside Column to Outside Column | 124" (10’ 4") | Maximum Lift Height (Without Adapters) | 75 1/2" |
| Maximum Lift Height (With Adapters) | 86 1/2" | Minimum Arm Height | 4" |
| Inside Column | 109 1/8” (9’ 1 1/8”) | |
| Drive Thru | 99” (8’ 3”) | Column Size | 7 1/4" x 11" |
| Column Thickness of Steel | 6mm | Base Of Lift | 17 1/2" x 17 3/4" | Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) | Shipping Weight | 1,300 LBS. | Adapter Heights | 4 Each 2”, 3”, 6” | Arm Hole/Adapter Peg Size | 1.5” |
| Requires a minimum of 4" of concrete with a 3000 psi. rating | ||
| Atlas® BP8000 Manual | Download |
| Atlas® BP8000 Cylinder Bleeding Procedure (Do this immediately after installation) | Download |
| Weight | 1300 lbs |
|---|---|
| Brand |
